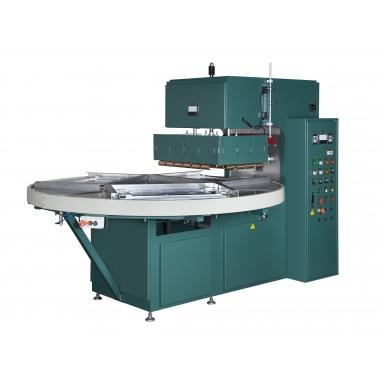

DT-C/R3
High-frequency automatic transmission materials Plastic Welding MachinesACCURATELY LOCATION
This machine is qualified to locate with high precision push plate location system(ELECTRICALLY GRADUATED DISC). And the sγstem make contraposition of large area process. By using the machine, it increases times of produce benefit and the finished product rate reach 100%. "
"JAMMING PREVENTION DEVICE: Equipped with frequency stabilizer and high frequency magnetic leakage suppressor. This device prevents leakage of elect-romagnetic radiation to avoid
jamming other electrical instruments such as televisions and radios, etc. "
One operator can control one or machine. The operator with simple training make high difficulty and high quality parts proscess.
Computer programm inside , it works accurately and stably after simply setting.
The safe, high speed and stable three-position rotating plate structure and accurate timing electronic system may largely accelerate the processing.
Chinese products | 高周波圓盤塑膠熔接機-轉盤/3站/氣壓/油壓式 | ||
---|---|---|---|
English Product | High Frequency Welding Plastic Machine-Automatic 3 stations rotory plate embossing machine | ||
Model | DT-12000C/R3 | DT-15000C/R3 | DT-25000C/R3 |
H.F.out-put Powwe kw | 12KW | 15KW | 25KW |
Oscillation Frequency | 27.12MHZ | ||
Power Supply | AC 220/380/415/440V 3p | ||
Input Power | 24KVA | 28KVA | 38KVA |
Oscillation Tube | 3130 | ITL/5-1/8T85 | 8T25 |
Rotation mode | Rotation mode: motor / high precision indexing plate | ||

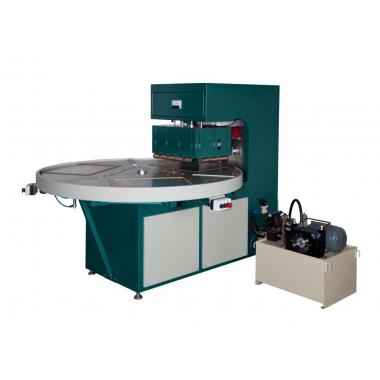

Operation type | Pneumatic OR Hydraulic pressure | ||
Maximum pressure(kgs) | Pneumatic 600kgs/Hydraulic 1500kgs | Pneumatic 800kgs/Hydraulic 2000kgs | Pneumatic 1200kgs/Hydraulic 3000kgs |
Up electrodes(mm) | 500*350 | 800*600 | 1000*800 |
Lower electrodes size(mm) | 650*500 | 950*750 | 1150*950 |
Max gap of electrodes(mm) | 150 | ||
Activities of the distance(mm) | 100 | ||
high sensitive spark-suppressor device | high sensitive spark-suppressor device | ||
Net Weight(kgs)(kgs) | 1100 | 1450/500 | 1500/500 |
Gross Weight(kgs(kgs) | 1300 | 1650/600 | 1700/600 |
Packing measurement(mm) | 4000*3500*1900 | 1350*2200*2100/ 1900*2700*1300 | |
Applicable material | Applicable material:PVC, or contain ingredients PVC30%, PU, TPU, EVA, TPE, PE, PET-A of PET-G.PLA.New research and development of environmentally friendly materials.Soft and hard rubber, animal leather or cloth, can be processed. | ||
Applicable product / range | Applicable product / range:The large upper, exquisite trademark, gloves, basketball, football, urine bag, drip bags, cushions, ice pillow, mattress, cushion, foot pad ... can be processed. |
