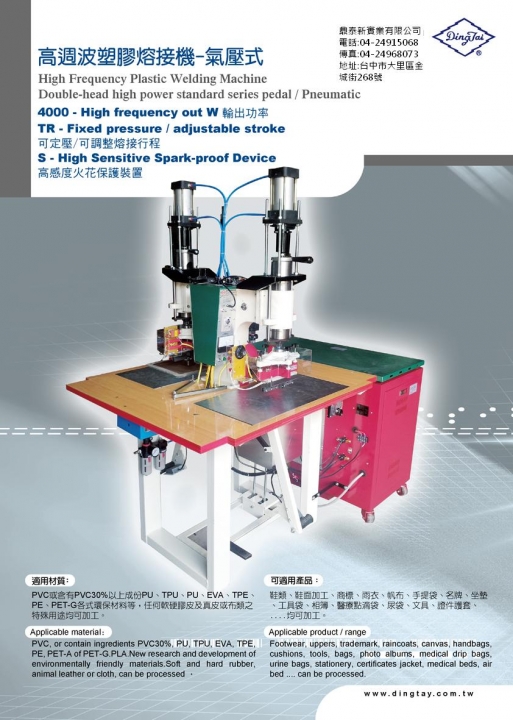

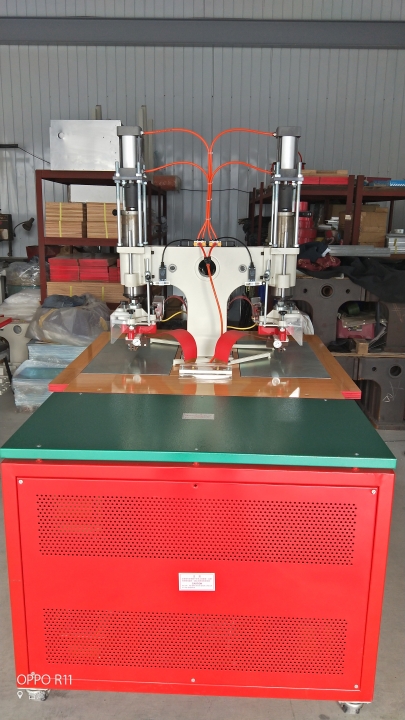

DT-TRS
High frequency plastic welding machineOver current protection system: When High Frequency output current exceeds the preset calue，the Oscillayion Tube and rectiller will be automatically
protected by the Over-Current-Relay to avoid any damage caused by of over time working or improper operation
- 1.Over current protection system: When High Frequency output current exceeds the preset calue，the Oscillayion Tube and rectiller will be automatically
- protected by the Over-Current-Relay to avoid any damage caused by of over time working or improper operation
- Design for the appointed machine
- Made in taiwan
- Transparent plastic visor
Specifications
| Model | DT-4000TR | DT-5000TR | DT-6500TR | DT-8000TR |
|---|---|---|---|---|
| H.F.out-put Power | 4KW | 5KW | 6.5KW | 8KW |
| Oscillation Frequency | 40.68/MHZ | 40.68/27.12MHZ | 27.12MHZ | 27.12MHZ |
| Power Supply | 3Ø AC 220/380/415/440 | |||
| Input Power | 5KVA | 6.5KVA | 11KVA | 14KVA |
| Oscillation Tube | TOSHIBA 7T84/3062 | TOSHIBA 7T85RB | TOSHIBA 7T69RB | TOSHIBA 7T69RB |
| Rectifier | Silicom | |||
| Max Pressure (kgs) | 200 | 300 | 400 | 400 |
| Mechanism | T type(Strengthen the mechanical tructure) | |||
| Method of operatio | Foot pedel and pneumatic both using | |||
| Control apparatus | high frequency welding timer | |||
| Electric heater | Constant temperature type electric heater | |||
| Lower electrodes | 350x700 | 350x700 | 350*700 | 400*800 |
| Press Stroke (mm) | 75 | |||
| 機械淨重(Approx) (kgs) | 380 | 380 | 390 | 400 |
| 機械毛重(Approx) (kgs) | 450 | 450 | 460 | 520 |
| 機械包裝 LxWxH(mm) | 1700*1310*1970 | |||
