DT-RB

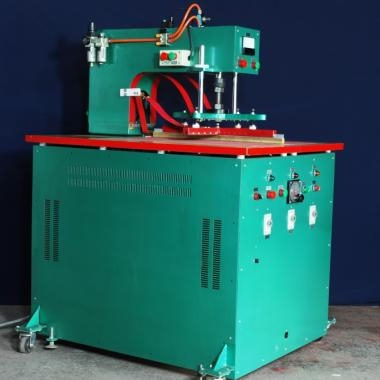

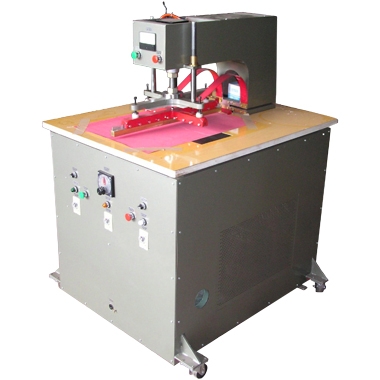

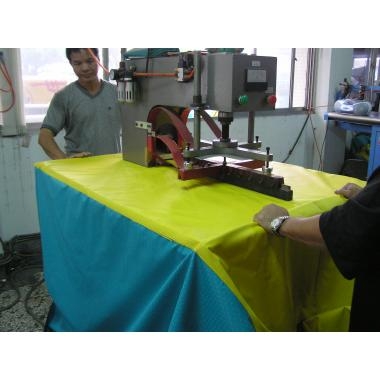

High frequency welding machine -Large pvc canvas

USAGE:
USED FOR PROCESSING AND WELDING OF PVC SHEET, PVC TARPAULIN,CHEMICAL
OIL CANVAS AND PVC TENTS OR COVER FOR AGRECULTURE PURPOSE ETC. MAXIMUM
CAPACITY 70CM PER 3 SEC

  • DT-6500RB
  • Design for the appointed machine.
  • Made in taiwan.
  • Gift one mould 700*20mm.
  • Can weld all around.
  • DT-8000RB
  • Design for the appointed machine.
  • Made in taiwan.
  • Give one mould 700*23mm.
  • Weld and operate all around.
  • DT-10000RB
  • Design for the appointed machine.
  • Made in taiwan.
  • Give one mould 700*23mm.
  • Weld and operate all around.
ADD TO INQUIRY BACK TO LIST
Specifications
Model DT-6500RB DT-8000RB DT-10000RB
H.F.out-put Power 6.5KW 8.5KW 10KW
Oscillation Frequency 27.12MHZ
Power Supply 3Ø/2Ø AC 220/380/415/440
Input Power 11KVA 11KVA 14KVA
Oscillation Tube TOSHIBA 7T69RB TOSHIBA 7T69RB TOSHIBA 3069RB
Rectifier Silicom
Max Pressure (kgs) 400
Operatio type Button starting and pneumatic both using
Control apparatus high frequency welding timer
Lower electrodes Cross type 750*650
Press Stroke (mm) 50
Net Weight(Approx) (kgs) 400 420 440
Gross Weight(Approx) (kgs) 500 520 540
機械包裝 LxWxH(mm) 1300*1200*1650 1300*1200*1650 1300*1200*1650
