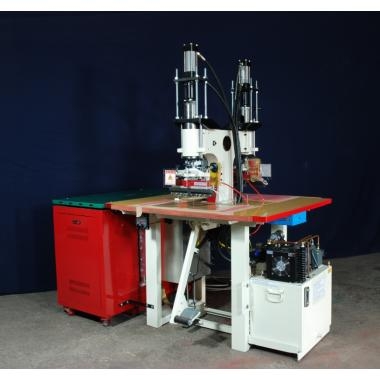

DT-TRW
High frequency plastic welding machineDT---DINGTAY Brand name
6500---high frequency out W
TR---Fixed pressure / adjustable stroke
W---Hydraulic pressure
- When spark occurs the high sensitiveness spark protect electric system cuts high frequency power immediately to protect mould and material.
- ADJUSTMENT FOR THE DISTANCE ON THE MACHINE HEAD: Adjust the distance on the machine head if practical as the mould's size and height are different. , Adjust the weld depth.Save working load while processing accuracy can reach up to 98%. Control of welding depth
- HIGH POWER WELDER: Using a special designed mechanism, the maximum pressure of foot pedal can reach up to 2000KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
Specifications
Model | DT-6500TRW | DT-8500TRW | DT-10000TRW | DT-12000TRW |
---|---|---|---|---|
H.F.out-put Power | 6.5KW | 8.5KW | 10KW | 12KW |
Oscillation Frequency | 27.12MHZ | |||
Power Supply | 3Ø AC 220/380/415/440V 50/60HZ | |||
Input Power | 11KVA | 14KVA | 18KVA | 22KVA |
Oscillation Tube | JAPAN TOSHIBA | JAPAN TOSHIBA | JAPAN TOSHIBA | JAPAN TOSHIBA |
Rectifier | Silicom | |||
Max Pressure (kgs) | 400~2000 | 400~1500 | 400~1500 | 400~1800 |
Mechanism | Unity mechanism type (Strengthen the mechanical tructure) | |||
Operatio type | Oil pressure/ Foot pedel | |||
Control apparatus | high frequency welding timer | |||
Electric heater | Constant temperature type electric heater | |||
Arc suppressor | highly sensitive sparklet oreventor | |||
Arc suppressor tube | USA 5557 | |||
Lower electrodes | 350x700 | 350x700 | 350x700 / 400x800 | 350x700 / 400x800 |
Motor horsepower | 2HP | |||
Press Stroke (mm) | 50 | |||
機械淨重(Approx) (kgs) | 720 | 730 | 750 | 780 |
機械毛重(Approx) (kgs) | 820 | 830 | 850 | 880 |
機械包裝 LxWxH(mm) | 2050x1250x1880 | 2050x1250x1880 | 2050x1250x1880 | 2100x1250x1880 |
