DT-C/L2W

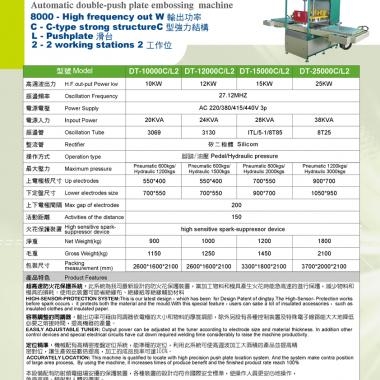

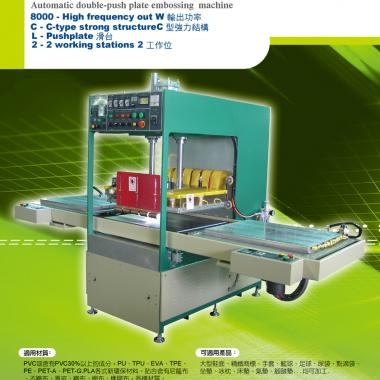

High Frequency Welding Plastic Machine-(Automatic double-push plate embossing machineSpecifications
英文產品 | 高頻焊接塑料機 - 自動3站旋轉板壓花機 | ||
---|---|---|---|
模型 | DT-1200℃/ L2 | DT-1500℃/ L2 | DT-2500℃/ L2 |
HFout-put Powwe kw | 12KW | 15KW | 25KW |
振盪頻率 | 27.12MHZ | ||
電源 | AC 220/380/415 / 440V 3p | ||
輸入功率 | 24KVA | 28KVA | 38KVA |
振盪管 | 3130 | ITL / 5-1 / 8T85 | 8T25 |
整流器 | 矽整流器 | ||
操作類型 | 氣動或液壓 | ||
最大壓力(公斤) | 氣動600kgs /液壓1500kgs | 氣動800kgs /液壓2000kgs | 氣動1200kgs /液壓3000kgs |
上電極(毫米) | 550 * 400 | 700 * 550 | 900 * 700 |
下電極尺寸(毫米) | 700 * 550 | 900 * 700 | 1050 * 950 |
最大電極間隙(毫米) | 200 | ||
距離活動(毫米) | 150 | ||
高靈敏度的火花抑制裝置 | 高靈敏度的火花抑制裝置 | ||
淨重(千克)(千克) | 1000 | 1200 | 1800 |
毛重(千克(公斤)) | 1250 | 1450 | 2100 |
包裝尺寸(毫米) | 2600 * 1000 * 2100 | 3300 * 1800 * 2100 | 3700 * 2000 * 2100 |
適用材料 | PVC,或含有成分PVC30%,PU,TPU,EVA,TPE,PE,PET-A的PET-G.PLA.New研發環保材料。軟硬橡膠,動物皮革或布料,可加工。 | ||
適用的產品/範圍 | 大型鞋面,精美商標,手套,籃球,足球,尿袋,滴水袋,靠墊,冰枕,床墊,靠墊,腳墊......均可加工。 |
