DT-C/R2

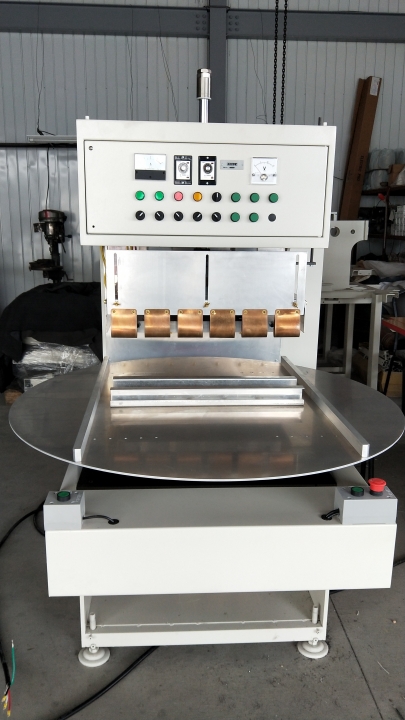

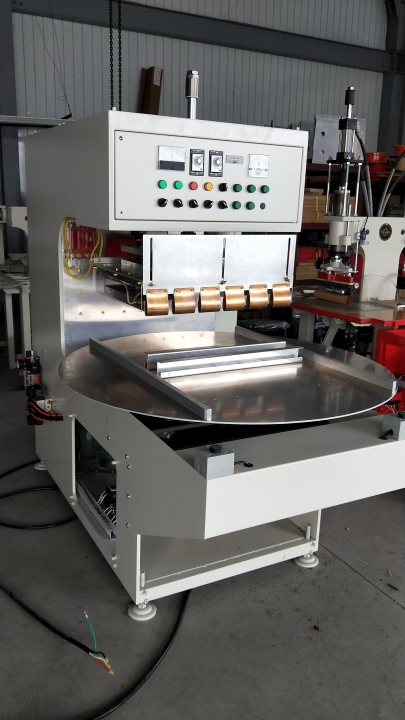

High Frequency Welding Plastic Machine-Manual type 2 stations rotory plate embossing machineDT---DINGTAY Brand name
10000---high frequency out W
R---Rotary
2---2 working stations
- High-sensor-protection system:This is our latest design，which has been for Design Patent of dingtay.The High-Sensor- Protection works before spark occurs， it protects both the material and the mould.With this special feature，users can sabe a lot of insulated accessories， such as insulated
- clothes and insulated paper.
- EASILY ADJUSTABLE TUNER: Output power can be adjusted at the tuner according to electrode size and material thickness. In addition other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity
Specifications
| Chinese products | 高周波圓盤塑膠熔接機-轉盤/2站/氣壓/油壓式 | ||
|---|---|---|---|
| English Product | High Frequency Welding Plastic Machine-Manual type 2 stations rotory plate embossing machine | ||
| Model | DT-5000C/R2 | DT-8000C/R2 | DT-10000C/R2 |
| H.F.out-put Powwe kw | 5KW | 8KW | 10KW |
| Oscillation Frequency | 27.12MHZ | ||
| Power Supply | AC 220/380/415/440V 3p | ||
| Input Power | 6.5KVA | 11KVA | 18KVA |
| Oscillation Tube | 7T85RB Canon imported from Japan (TOSHIBA) |
7T69RB Canon imported from Japan (TOSHIBA) |
E3069 Canon imported from Japan (TOSHIBA) |
| Rectifier | Silicon Rectifier | ||
| Operation type | Pneumatic OR Hydraulic pressure | ||
| Maximum pressure(kgs) | neumatic 400kgs/Hydraulic 1200kgs | Pneumatic 500kgs/Hydraulic 1200kgs | |
| Up electrodes(mm) | 400*300 | 500*400 | |
| Lower electrodes size(mm) | 550*1000 | 650*1100 | |
| Max gap of electrodes(mm) | 150 or 200 | ||
| Activities of the distance(mm) | 150 | ||
| high sensitive spark-suppressor device | high sensitive spark-suppressor device | ||
| Net Weight(kgs) | 1200 | 1200 | 1200 |
| Gross Weight(kgs) | 1400 | 1400 | 1400 |
| Packing measurement(mm) | 1910*1210*1810mm | 1910*1210*1810mm | |
| Applicable material | PVC, or contain ingredients PVC30%, PU, TPU, EVA, TPE, PE, PET-A of PET-G.PLA.New research and development of environmentally friendly materials.Soft and hard rubber, animal leather or cloth, can be processed. | ||
| Applicable product / range | The large upper, exquisite trademark, gloves, basketball, football, urine bag, drip bags, cushions, ice pillow, mattress, cushion, foot pad ... can be processed. | ||
