DT-FBS

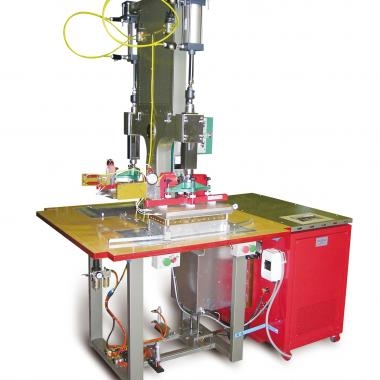

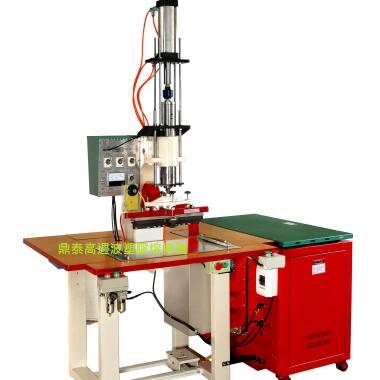

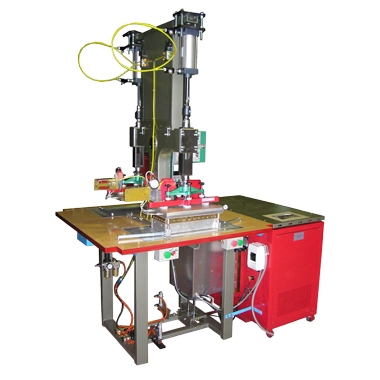

High Frequency Double-head PVC/PET/PET-G Plastic Blister Packing Welding MachineWhen spark occurs the high sensitiveness spark protect electric system cuts high frequency power immediately to protect mould and material.
SAFETY DEVICE: When the current exceeds its limits the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.
EASILY ADJUSTABLE TUNER: Output power can be adjusted at the tuner according to electrode size and material thickness. In addition other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.
Over current protection system:When High Frequency output current exceeds the preset calue，the Oscillation Tube and rectifier will be automatically protected by the Over-Current- Relay to avoid any damage caused by of over time working or improper operation.
Specifications
| English Product | High Frequency Double-head PVC/PET/PET-G Plastic Blister Packing Welding Machine | |||
|---|---|---|---|---|
| Model | DT-5000FBS | DT-6500FBS | DT-8000FBS | DT-10000FBS |
| H.F.out-put Power kw | 5KW | 6.5KW | 8KW | 10KW |
| Oscillation Frequency | 27.12MHZ | |||
| Power Supply | AC 220/380/415/440V 3p/1p | |||
| Input Power | 9KVA | 11KVA | 14KVA | 18KVA |
| Oscillation Tube | 7T85 | 7T69 | 7T69 | 7T69/3069 |
| Rectifier | Silicon Rectifier | |||
| Operation type | Two-handed button start/Pneumatic | |||
| Maximum pressure(kgs) | 400 | 500 | ||
| Up electrodes(mm) | 220*70/320*70 | 320*70 | ||
| Lower electrodes size(mm) | 700*350 | 700*350/800*400 | 800*400 | |
| Max gap of electrodes(mm) | 220 | 220 / 270 | ||
| Activities of the distance(mm) | 150 | |||
| high sensitive spark-suppressor device. | high sensitive spark-suppressor device | high sensitive spark-suppressor device-5557 | ||
| Net Weight(kgs) | 390 | 410 | 430 | 460 |
| Gross Weight(kgs) | 540 | 560 | 580 | 610 |
| Packing measurement(mm) | 1800*1210*2140 / 1800*1210*2220 | |||
| Applicable material | 1.PVC or contains 30% PVC composition.2.PVC double blister packaging and melt cutting3.PET-G blister packaging welding4.PET-G and the paper card weld5.PVC 6.PVC rubber blister packagingwelding and paper cards 7.PLA.PET-A | |||
| Applicable product / range | For Products: hand tools, memory card, electronic instruments, scissors, gardening tools, locks, can be vacuum, anti-theft, Waterproof, and increase the appearance and prevent the destruction of | |||
